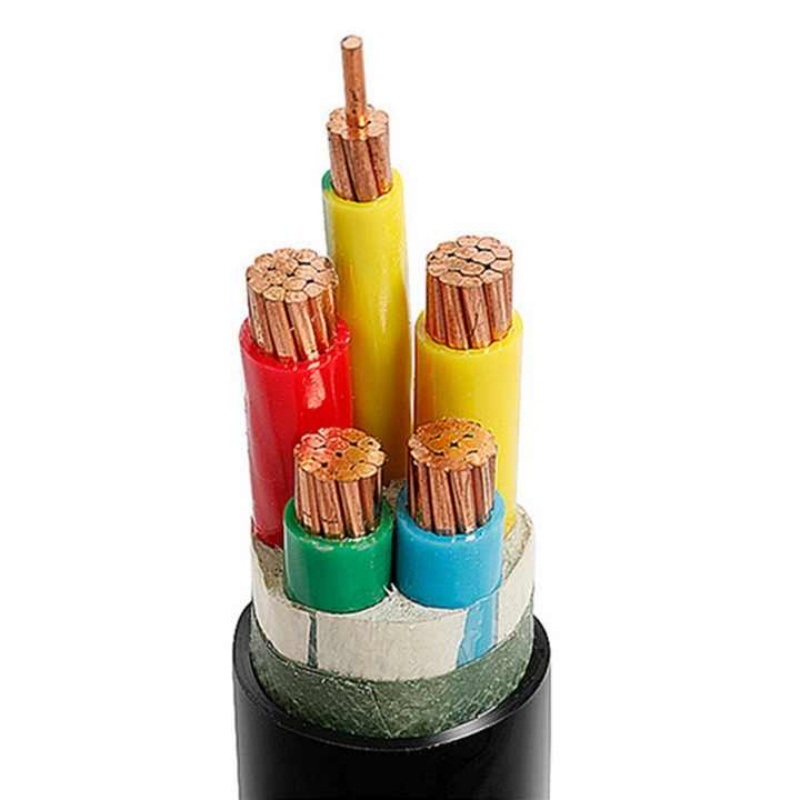

U-1000 R2V/Xv/RV 5g 35 mm² 4X16 4X95 mm² Copper XLPE Power Cable Electrique 5 Core

1. Technical Parameters

1. Conductor System:

• 35mm²: ≤0.524Ω/km

• 16mm²: ≤1.15Ω/km

• 95mm²: ≤0.193Ω/km

• Main: 35mm² oxygen-free copper (IEC 60228 Class 2)

• Branches: 4×16mm² + 4×95mm² pure copper

• Structure: Fine stranded (16mm²: 126/0.4mm; 95mm²: 1330/0.3mm)

• DC resistance (20℃):

2. Insulation:

• 35mm²: 1.2mm

• 16mm²: 0.9mm

• 95mm²: 1.4mm

• Material: XLPE

• Thickness:

• Insulation resistance: ≥1000MΩ·km

3. Cable Construction:

• Main cable: 35mm²+4×16mm²

• Branches: 4×95mm²

• Filler: Flame-retardant PP yarn

• Screening: Dual-layer (copper braid + Al-PET tape)

4. Sheath:

• Main: 2.0mm

• Branches: 2.5mm

• Material: Flame-retardant PVC (ST2)

• Thickness:

• Color: Main-black, Branches-gray (customizable)

2. Key Features

• Integrated main-branch design

• Optimized conductor matching

• Compact structure saves space

• Dual screening system

• Short-circuit withstand: 250℃/5s

3. Applications

• Industrial power distribution

• High-rise building risers

• Tunnel lighting systems

• Data center power networks

4. Manufacturing

• CCV cross-linking line

• Online eccentricity control

• Laser-guided cabling

• 100% electrical testing

5. Packaging & Shipping

• Separate reeling for main/branches

• Shock-proof transportation

• Storage temperature: -20℃～+50℃

6. Installation

• Max pulling tension: 50N/mm²

• Dedicated branch joints

• Post-installation testing

7. Service

• 36-month warranty

• Technical consultancy

• Emergency replacement

• Load capacity analysis
