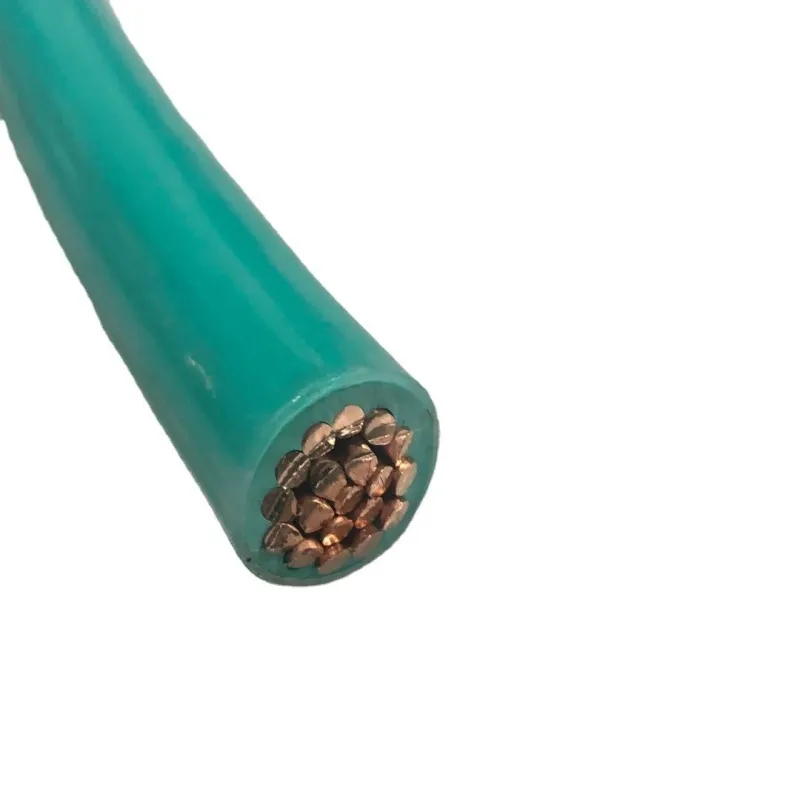

In the intricate network of electrical systems, grounding cables serve as the unsung heroes, providing a critical safety pathway for fault currents and ensuring the stability of entire electrical infrastructures. Among these essential components, the IEC 61138 compliant super Flexible Copper grounding cables, available in 70mm² or 2/0AWG with transparent PVC insulation, stand out as a paragon of reliability and innovation. Designed to meet the stringent requirements of international standards, these cables are engineered to deliver exceptional performance in the most demanding grounding applications, spanning industrial facilities, commercial buildings, renewable energy installations, and residential complexes. Their unique combination of high-purity Copper Conductors, super flexible construction, and transparent PVC insulation makes them a versatile and indispensable solution for ensuring electrical safety and system integrity. At the heart of these grounding cables lies the high-purity copper conductor, a material chosen for its unparalleled electrical conductivity and reliability. The copper used in these cables undergoes rigorous purification processes to achieve a purity level of 99.95% or higher, minimizing the presence of impurities that could impede electron flow. This exceptional purity translates to low electrical resistance, a critical attribute for grounding systems, where the primary function is to provide a low-impedance path for fault currents to dissipate safely into the ground. In the event of an electrical fault—such as a short circuit or lightning strike—these high-conductivity conductors ensure that large currents are routed away from sensitive equipment, machinery, and personnel, reducing the risk of electrical shock, equipment damage, or fire.
The conductor’s design is further optimized through a fine-stranded construction, which is the key to the cable’s super flexible nature. Unlike solid conductors or those with larger strands, which can be rigid and resistant to bending, these cables are composed of hundreds of ultra-thin Copper Strands twisted together in a precise pattern. This intricate stranding not only enhances Flexibility but also increases the conductor’s surface area, which in turn improves current-carrying capacity and heat dissipation. The flexibility afforded by this design is transformative in practical applications: it allows the cable to be easily routed through tight spaces, such as the confined compartments of electrical panels, around the contours of machinery, or through the narrow conduits commonly found in building structures. For electricians and installers, this means reduced installation time and effort, as the cable can be maneuvered without the need for excessive force or specialized tools, minimizing the risk of conductor damage during setup. Moreover, the fine-stranded construction enhances the cable’s durability and resistance to fatigue. In dynamic environments where vibrations or thermal expansion/contraction are common—such as in industrial facilities with heavy machinery or renewable energy installations with rotating equipment—the Stranded Conductors can absorb mechanical stress without breaking. This resilience ensures a long service life, even under continuous use, reducing the need for frequent replacements and lowering maintenance costs over time. Encasing the high-performance copper conductor is a transparent PVC (Polyvinyl Chloride) insulation layer, a feature that combines functionality with practicality. The transparency of the insulation provides a clear view of the underlying copper conductor, enabling visual inspections that are both quick and non-intrusive. Electricians and maintenance personnel can easily check for signs of conductor damage, corrosion, or degradation without stripping the insulation, a process that would otherwise compromise the cable’s integrity. This visibility is particularly valuable during routine maintenance checks or troubleshooting, allowing for timely interventions that prevent potential failures and ensure the grounding system remains effective.
Beyond its transparency, the PVC insulation offers robust protection against a range of environmental hazards. It is formulated to resist moisture, a critical attribute for grounding cables, which are often installed in damp or humid environments—such as basements, outdoor trenches, or industrial areas with washdown procedures. Moisture resistance prevents water ingress that could lead to conductor corrosion or insulation breakdown, both of which would impair the cable’s ability to conduct fault currents. The insulation also provides excellent resistance to abrasion and physical impact, safeguarding the conductor against damage from contact with tools, machinery, or construction materials during installation or operation.
Chemical Resistance is another key feature of the PVC insulation, making the cable suitable for use in environments where exposure to oils, solvents, or industrial chemicals is possible. This resistance ensures that the insulation does not degrade or become brittle when in contact with such substances, maintaining its protective properties and electrical integrity. Additionally, the insulation is designed to withstand a wide range of temperatures, from extreme cold to moderate heat, ensuring consistent performance in diverse climatic conditions—whether installed in freezing outdoor environments or in the warm confines of an industrial plant. Compliance with the IEC 61138 standard is a cornerstone of these grounding cables’ design and performance. IEC 61138, titled “Power Cables with extruded insulation and their accessories for rated voltages above 30 kV (Um = 36 kV) up to 150 kV (Um = 170 kV) – Part 1: Cables for rated voltages above 30 kV up to 150 kV,” sets forth stringent requirements for the design, materials, and performance of high-Voltage Cables, including those used for grounding purposes. Adherence to this standard ensures that the cables have undergone rigorous testing to verify their electrical, mechanical, and environmental performance. Tests mandated by IEC 61138 include conductor resistance measurements to confirm conductivity, insulation resistance tests to ensure effective electrical isolation, and dielectric strength tests to verify the insulation’s ability to withstand high voltages without breakdown. Mechanical tests assess the cable’s flexibility, tensile strength, and resistance to bending and abrasion, ensuring it can withstand the rigors of installation and operation. Environmental tests evaluate performance under extreme temperatures, moisture, and chemical exposure, confirming the cable’s suitability for diverse applications. By meeting these standards, the cables provide users with the assurance that they are investing in a product that meets global benchmarks for safety and reliability.
The cables are available in two equivalent sizes: 70mm² (square millimeters) and 2/0AWG (American Wire Gauge). This dual sizing caters to regional preferences, with 70mm² being commonly used in metric systems and 2/0AWG in imperial systems. Both sizes offer a high current-carrying capacity, making them suitable for heavy-duty grounding applications where large fault currents may occur. The 70mm²/2/0AWG 规格 ensures that the cable can handle the high currents associated with industrial machinery, power distribution systems, and renewable energy installations, providing a robust and reliable grounding path.
The versatility of these grounding cables is reflected in their wide range of applications across various sectors. In industrial facilities—such as manufacturing plants, refineries, and processing centers—they are used to ground large machinery, transformers, and electrical panels. The super flexible design allows for easy installation around complex equipment layouts, while the high-conductivity copper ensures that fault currents from machinery malfunctions are safely dissipated. The transparent insulation also facilitates regular inspections in these often harsh environments, ensuring the grounding system remains intact.
In commercial buildings—including office towers, shopping malls, and hospitals—the cables play a vital role in protecting electrical systems and occupants. They are integrated into the building’s grounding network to safeguard against lightning strikes, power surges, and electrical faults in HVAC systems, elevators, and security systems. The flexibility of the cables simplifies installation in the confined spaces of commercial electrical rooms and behind walls, while their compliance with IEC 61138 ensures they meet the strict safety standards required for public spaces.
Renewable energy installations, such as solar farms and wind turbines, also benefit from these grounding cables. In solar farms, they are used to ground solar panels, inverters, and distribution equipment, protecting against electrical faults and ensuring the safe operation of the system. In wind turbines, their flexibility allows for installation in the tight spaces within turbine nacelles, while their durability ensures they can withstand the vibrations and environmental exposure typical of wind energy facilities. The high current-carrying capacity of the 70mm²/2/0AWG 规格 is particularly valuable in these applications, where large fault currents can occur due to the high voltages involved.
Residential complexes, too, rely on these grounding cables to enhance electrical safety. They are used in main electrical panels, subpanels, and around major appliances to provide a safe path for fault currents. The transparent insulation allows homeowners and electricians to visually inspect the cables during routine maintenance, ensuring the grounding system remains effective in protecting families and property.
Installation of these grounding cables is designed to be straightforward, thanks to their super flexible construction and user-friendly features. The fine-Stranded Copper Conductor bends easily without kinking, allowing for precise routing through conduits, around corners, and into tight spaces. The transparent PVC insulation is easy to strip using standard tools, enabling secure termination to grounding rods, bus bars, or equipment terminals. Proper termination is critical for ensuring low resistance in the grounding path, and the cable’s design facilitates the creation of secure, low-impedance connections. Maintenance of the cables is minimal but essential for ensuring long-term performance. The transparent insulation allows for visual inspections to check for conductor corrosion, insulation damage, or loose connections. Periodic resistance testing can also be performed to verify that the cable’s conductivity remains within acceptable limits. In environments where chemical exposure or moisture is a concern, more frequent inspections may be warranted to ensure the insulation remains intact. With proper installation and maintenance, these cables are designed to provide reliable service for 20 years or more, making them a cost-effective investment in electrical safety.
In conclusion, the IEC 61138 compliant super flexible copper grounding cables with transparent PVC insulation, available in 70mm² or 2/0AWG, represent a pinnacle of grounding technology. Their combination of high-purity Copper Conductors, super flexible fine-stranded construction, transparent and durable PVC insulation, and adherence to international standards ensures they deliver exceptional performance in a wide range of applications. Whether protecting industrial machinery, commercial buildings, renewable energy installations, or residential complexes, these cables provide a reliable, safe, and efficient path for fault currents, safeguarding equipment, personnel, and property. For engineers, electricians, and facility managers seeking a grounding solution that combines versatility, durability, and compliance, these cables stand as an unparalleled choice, embodying the highest standards of quality and innovation in electrical safety.
